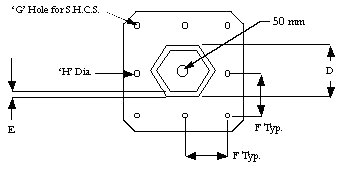

DIMENSIONS FOR HEXAGONAL COLUMNS





Model

Type

A

B

C **

D

E

F

G

H

WT(#)

IHC-1M

Milled

400MM

1.75"

26.00"

9.50"

1.50"

6.30"

1/2" or M12

20MM

375

IHC-1D

Drilled

400MM

1.75"

26.00"

9.50"

1.50"

6.30"

1/2" or M12

20MM

375

IHC-1M-A*

Milled

400MM

1.75"

26.00"

9.50"

1.50"

6.30"

1/2" or M12

20MM

145

IHC-2M

Milled

500MM

1.75"

26.00"

13.00"

1.12"

7.87"

1/2" or M12

20MM

610

IHC-2D

Drilled

500MM

1.75"

26.00"

13.00"

1.12"

7.87"

1/2" or M12

20MM

610

IHC-2M-A*

Milled

500MM

1.75"

26.00"

13.00"

1.12"

7.87"

1/2" or M12

20MM

235

* NOTE: The items in blue print signify that the item is made from Aluminum.

** For Larger Casting Sizes See Page 26 and 27.
