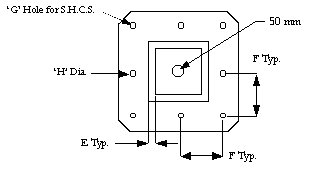

DIMENSIONS FOR SQUARE COLUMN
|
Model |
Type |
A |
B |
C ** |
D |
E |
F |
G |
H |
WT(#) |
|
ISC-1M |
Milled |
400MM |
1.75" |
22.00" |
8.00" |
1.12" |
6.30" |
1/2" or M12 |
20MM |
275 |
|
ISC-1D |
Drilled |
400MM |
1.75" |
22.00" |
8.00" |
1.12" |
6.30" |
1/2" or M12 |
20MM |
275 |
|
ISC-1M-A* |
Milled |
400MM |
1.75" |
22.00" |
8.00" |
1.12" |
6.30" |
1/2" or M12 |
20MM |
125 |
|
ISC-2M |
Milled |
400MM |
1.75" |
26.00" |
10.00" |
1.12" |
6.30" |
1/2" or M12 |
20MM |
365 |
|
ISC-2D |
Drilled |
400MM |
1.75" |
26.00" |
10.00" |
1.12" |
6.30" |
1/2" or M12 |
20MM |
365 |
|
ISC-2M-A* |
Milled |
400MM |
1.75" |
26.00" |
10.00" |
1.12" |
6.30" |
1/2" or M12 |
20MM |
165 |
|
ISC-3M |
Milled |
500MM |
2.00" |
22.00" |
8.00" |
1.12" |
7.87" |
1/2" or M12 |
20MM |
360 |
|
ISC-3D |
Drilled |
500MM |
2.00" |
22.00" |
8.00" |
1.12" |
7.87" |
1/2" or M12 |
20MM |
360 |
|
ISC-3M-A* |
Milled |
500MM |
2.00" |
22.00" |
8.00" |
1.12" |
7.87" |
1/2" or M12 |
20MM |
155 |
|
ISC-4M |
Milled |
500MM |
2.00" |
26.00" |
10.00" |
1.12" |
7.87" |
1/2" or M12 |
20MM |
450 |
|
ISC-4D |
Drilled |
500MM |
2.00" |
26.00" |
10.00" |
1.12" |
7.87" |
1/2" or M12 |
20MM |
450 |
|
ISC-4M-A* |
Milled |
500MM |
2.00" |
26.00" |
10.00" |
1.12" |
7.87" |
1/2" or M12 |
20MM |
198 |
|
ISC-5M |
Milled |
630MM |
2.25" |
28.50" |
12.00" |
2.25" |
9.84" |
1/2" or M12 |
20MM |
950 |
|
ISC-5M-A* |
Milled |
630MM |
2.25" |
28.50" |
12.00" |
2.25" |
9.84" |
1/2" or M12 |
20MM |
365 |
|
ISC-6M |
Milled |
630MM |
2.25" |
28.50" |
15.75" |
2.25" |
9.84" |
1/2" or M12 |
20MM |
1180 |
|
ISC-6M-A* |
Milled |
630MM |
2.25" |
28.50" |
15.75" |
2.25" |
9.84" |
1/2" or M12 |
20MM |
450 |
|
* NOTE: The items in blue print signify that the item is made from Aluminum. ** For Larger Casting Sizes See Page 26 and 27. |
||||||||||
T-Type
Column
with
Window
Dimensions
