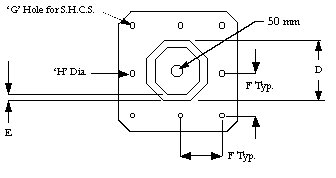

DIMENSIONS FOR OCTAGONAL COLUMNS





Model

Type

A

B

C **

D

E

F

G

H

WT(#)

IOC-1M

Milled

400MM

1.75"

26.00"

9.50"

1.50"

6.30"

1/2" or M12

20MM

360

IOC-1D

Drilled

400MM

1.75"

26.00"

9.50"

1.50"

6.30"

1/2" or M12

20MM

360

IOC-1M-A*

Milled

400MM

1.75"

26.00"

9.50"

1.50"

6.30"

1/2" or M12

20MM

140

IOC-2M

Milled

500MM

1.75"

26.00"

13.00"

1.12"

7.87"

1/2" or M12

20MM

590

IOC-2D

Drilled

500MM

1.75"

26.00"

13.00"

1.12"

7.87"

1/2" or M12

20MM

590

IOC-2M-A*

Milled

500MM

1.75"

26.00"

13.00"

1.12"

7.87"

1/2" or M12

20MM

225

* NOTE: The items in blue print signify that the item is made from Aluminum.

** For Larger Casting Sizes See 26 and 27.
