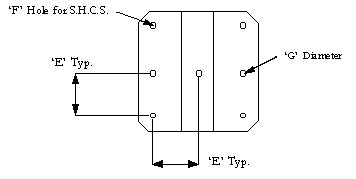

DIMENSIONS FOR T-TYPE COLUMNS WITH A WINDOW







Model

Type

A

B

C **

D

E

F

G

H

I

WT(#)

ITW-1M

Milled

400MM

1.75"

18.00"

3.00"

6.30"

1/2" or M12

20MM

9.25

9.20

245

ITW-1D

Drilled

400MM

1.75"

18.00"

3.00"

6.30"

1/2" or M12

20MM

9.25

9.20

245

ITW-1M-A*

Milled

400MM

1.75"

18.00"

3.00"

6.30"

1/2" or M12

20MM

9.25

9.20

95

ITW-2M

Milled

400MM

1.75"

24.00"

4.00"

6.30"

1/2" or M12

20MM

15.25

9.20

330

ITW-2D

Drilled

400MM

1.75"

24.00"

4.00"

6.30"

1/2" or M12

20MM

15.25

9.20

330

ITW-2M-A*

Milled

400MM

1.75"

24.00"

4.00"

6.30"

1/2" or M12

20MM

15.25

9.20

130

ITW-3M

Milled

500MM

2.00"

18.00"

3.00"

7.87"

1/2" or M12

20MM

9.25

12.70

355

ITW-3D

Drilled

500MM

2.00"

18.00"

3.00"

7.87"

1/2" or M12

20MM

9.25

12.70

355

ITW-3M-A*

Milled

500MM

2.00"

18.00"

3.00"

7.87"

1/2" or M12

20MM

9.25

12.70

150

ITW-4M

Milled

500MM

2.00"

24.00"

4.00"

7.87"

1/2" or M12

20MM

15.25

12.70

455

ITW-4D

Drilled

500MM

2.00"

24.00"

4.00"

7.87"

1/2" or M12

20MM

15.25

12.70

455

ITW-4M-A*

Milled

500MM

2.00"

24.00"

4.00"

7.87"

1/2" or M12

20MM

15.25

12.70

175

* NOTE: The items in blue print signify that the item is made from Aluminum.
