Click  image for a larger view.

Quick Facts About the Fixture Shown on This Page:

Description:

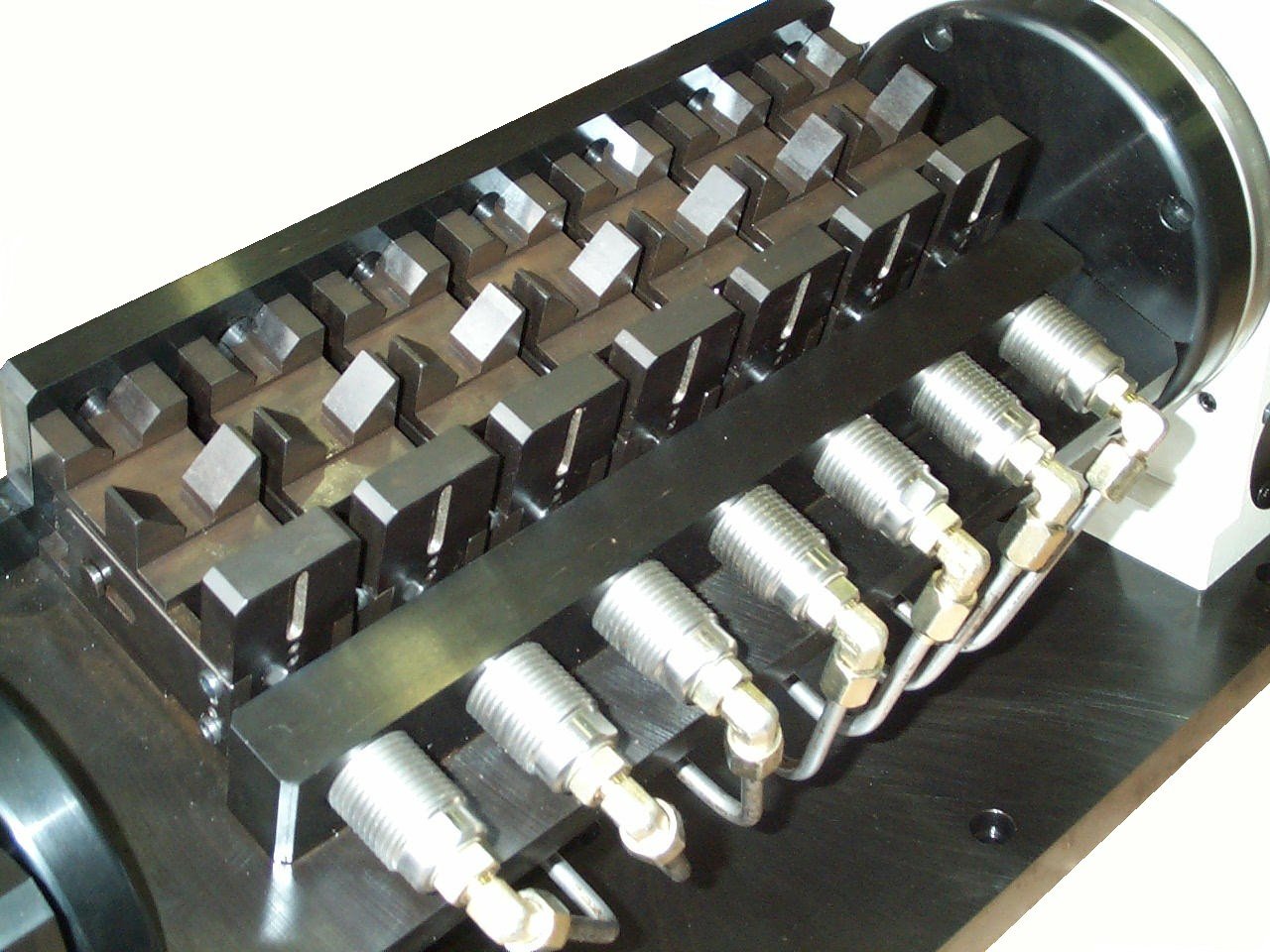

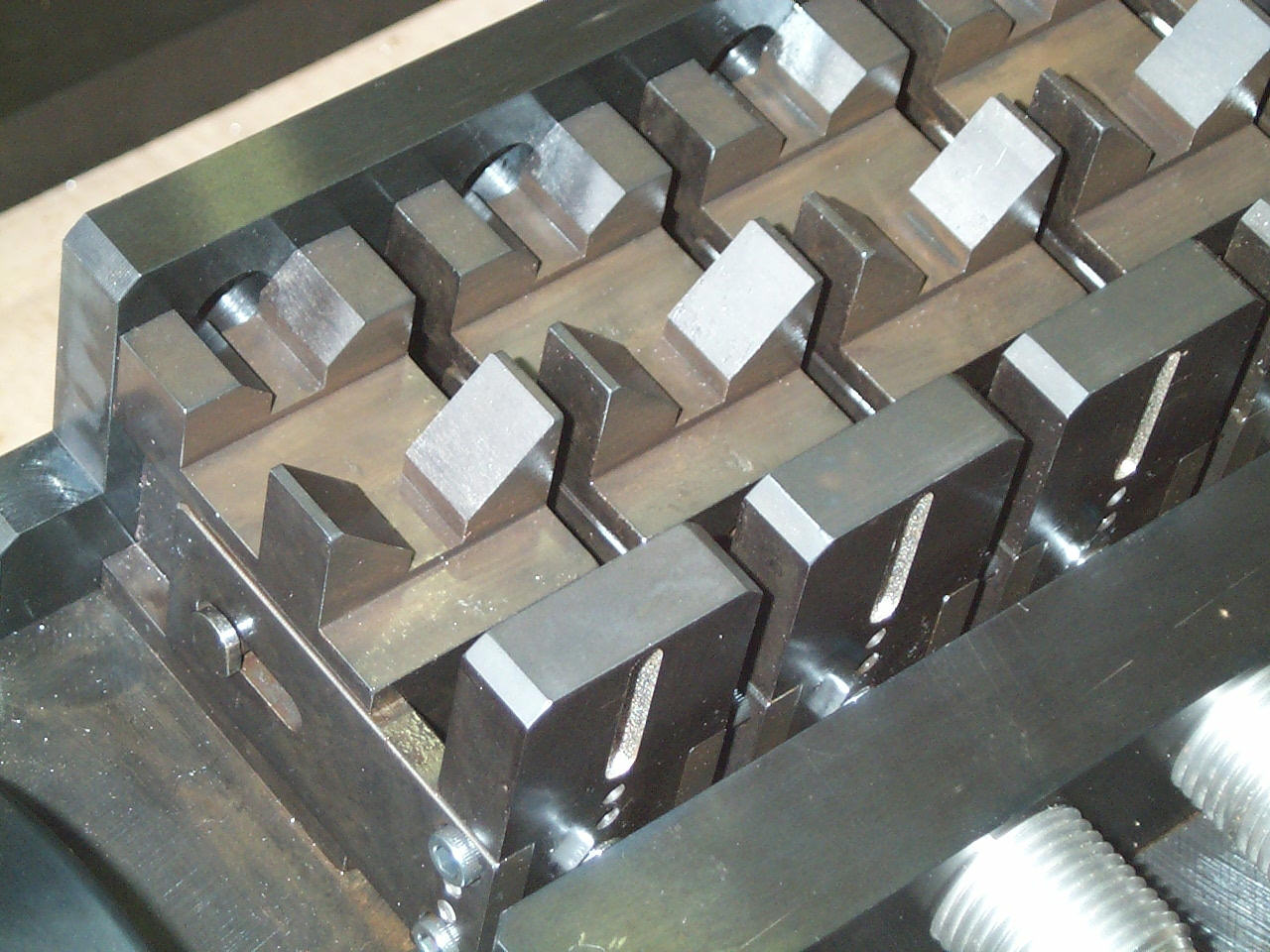

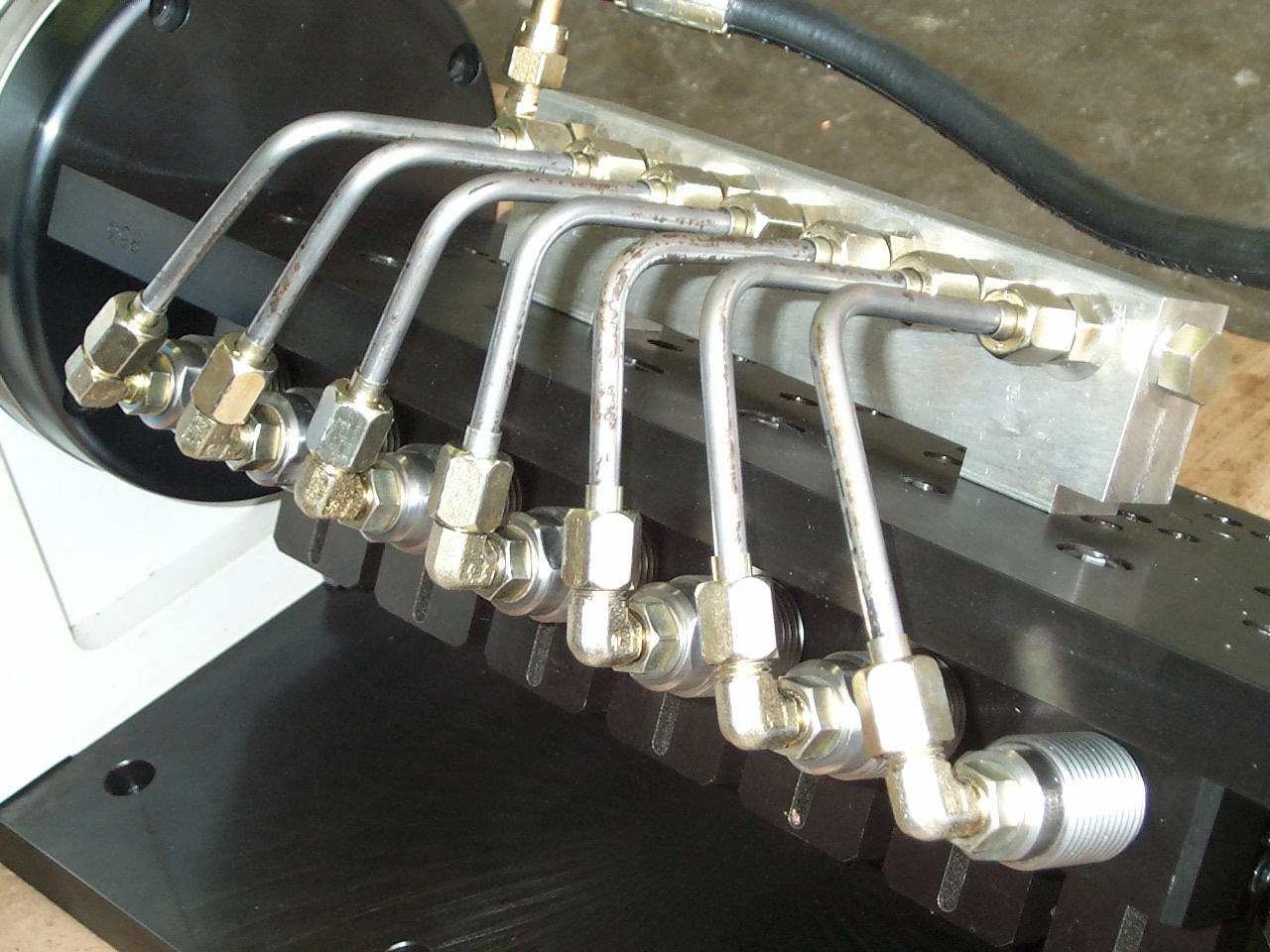

4th Axis Fixture with Hydraulic Clamping.

Before:

Two separate machining operations one part at a time. End-user had quality issues to address.

After:

One operation, seven parts per pallet (twin pallet).

Results:

Increased production with improved quality.

Features:

The fixtures are able to accommodate four different styles and lengths of parts.



Click each image for a larger view.
