Our Fourth Axis Fixtures can accommodate both hydraulic and manual clamping. All fourth axis fixtures come supplied with sealed ball bearing tailstocks. The fixtures can also be manufactured to mount any make and model of indexer.

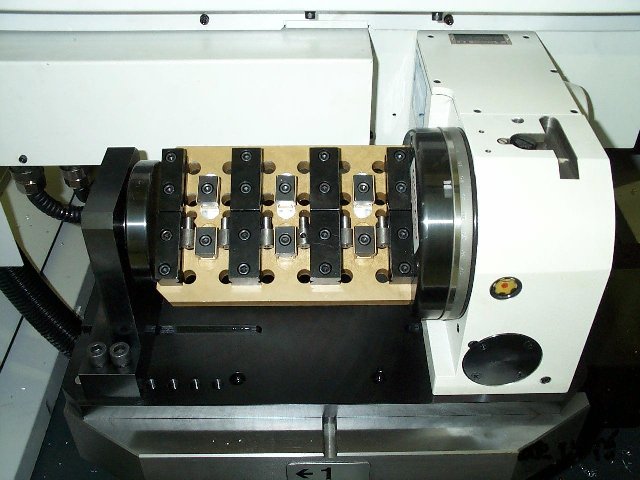

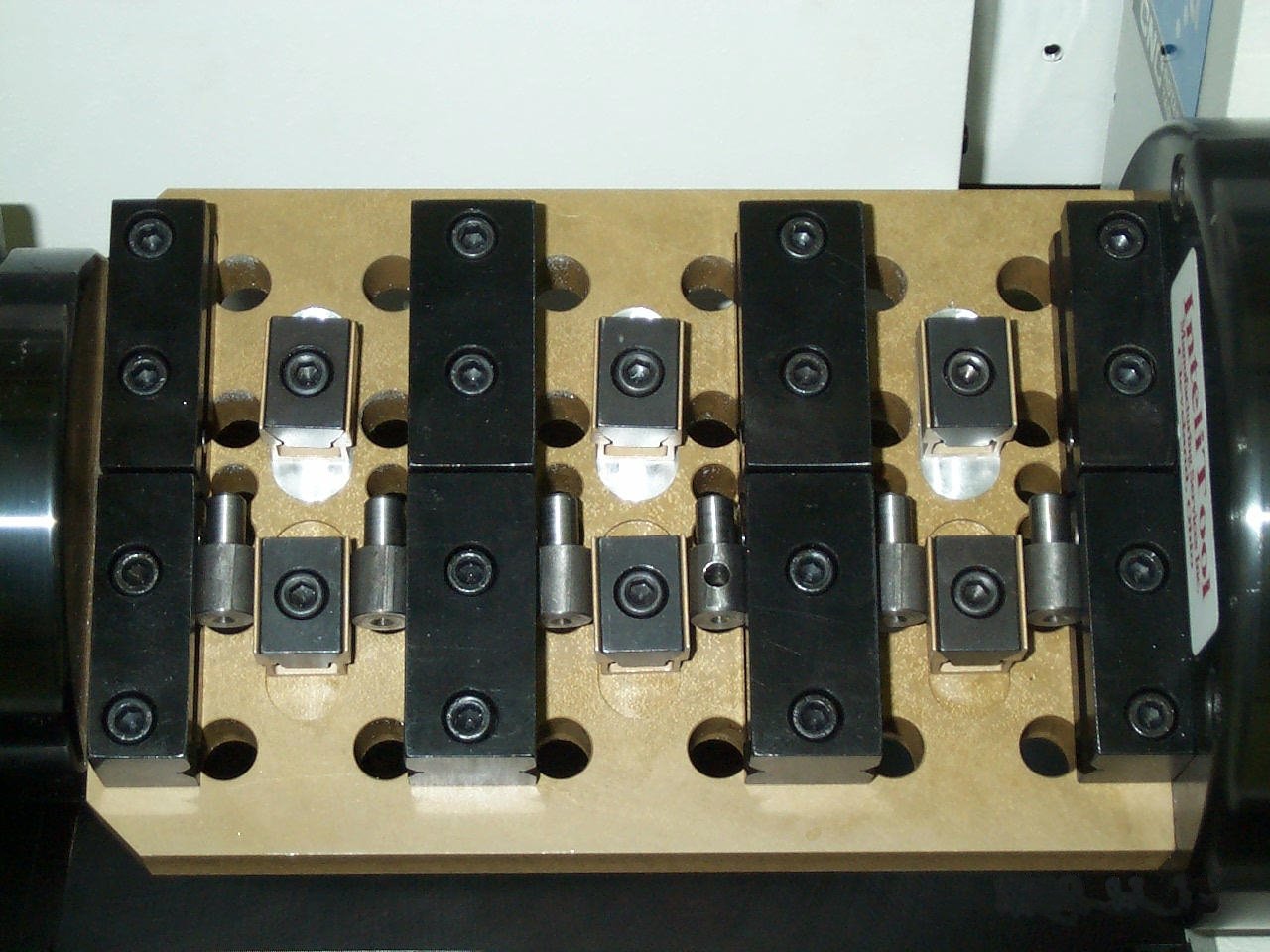

4thaxis Gold1.jpg (61949 bytes)                        4thaxis Gold2.jpg (191945 bytes)
Click each image for a larger view.

Through the use of a fixture mounted to a Fourth Axis unit, you can machine up to four sides of a part in in one operation.

In particular, screw machine shops have found this style of fixture to be of great benefit in improving the manufacturing process with high volume parts that require secondary work.

With the fixtures shown on this page, the typical time savings in set-up and part machining has been around 70 percent (when compared with the company’s previous method of machining the part).
